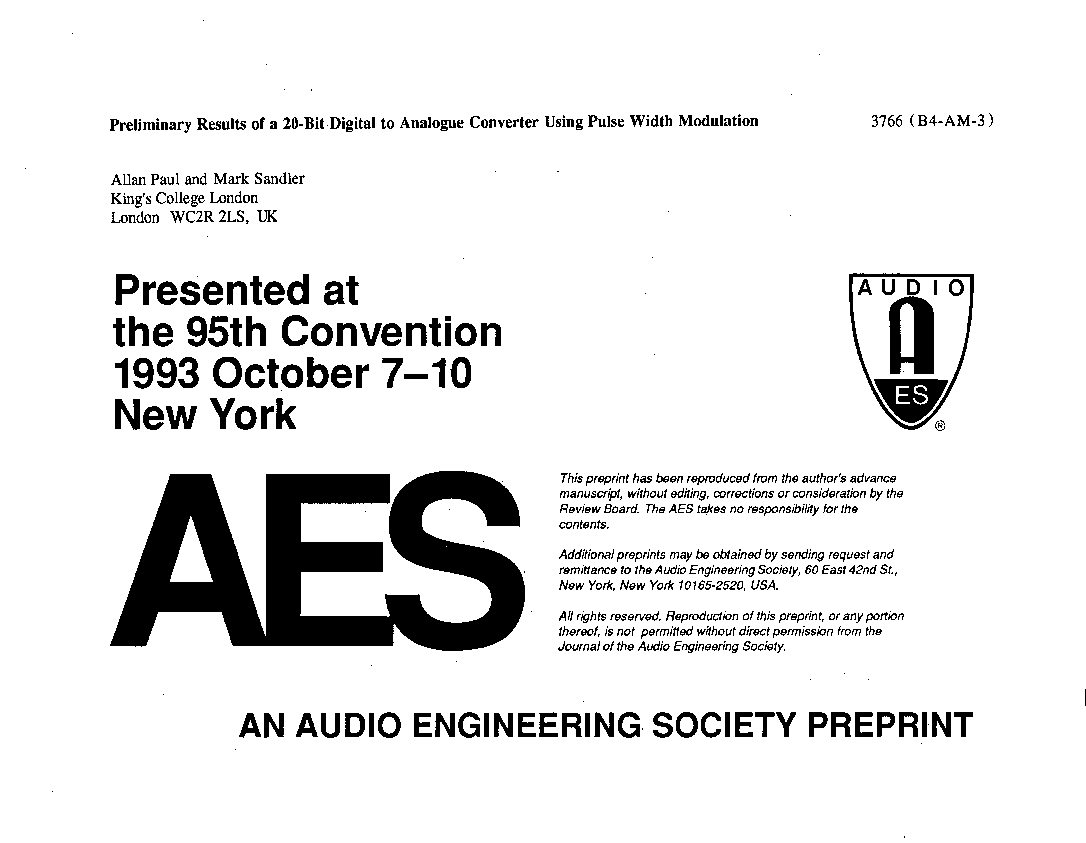

Preliminary Results of a 20-Bit Digital-to-Analog Converter Using Pulse-Width Modulation

It has already been shown that a 16-bit quality digital-to-analog converter (DAC) using pulse-width modulation (PWM) is possible with effectively zero harmonic distortion. The techniques used to achieve this have been extended to 20 bits. They involve precompensation and noise shaping of the input signal prior to the PWM. The techniques are explained and computer simulations are presented of a 20-bit DAC.

Authors: Paul, Allan; Sandler, Mark
Affiliation: King's College London, London, UK
AES Convention:95 (October 1993) Paper Number:3766 Import into BibTeX
Subject:Digital and Analog Electronics

Click to purchase paper or login as an AES member. If your company or school subscribes to the E-Library then switch to the institutional version. If you are not an AES member and would like to subscribe to the E-Library then Join the AES!

This paper costs $20 for non-members, $5 for AES members and is free for E-Library subscribers.
