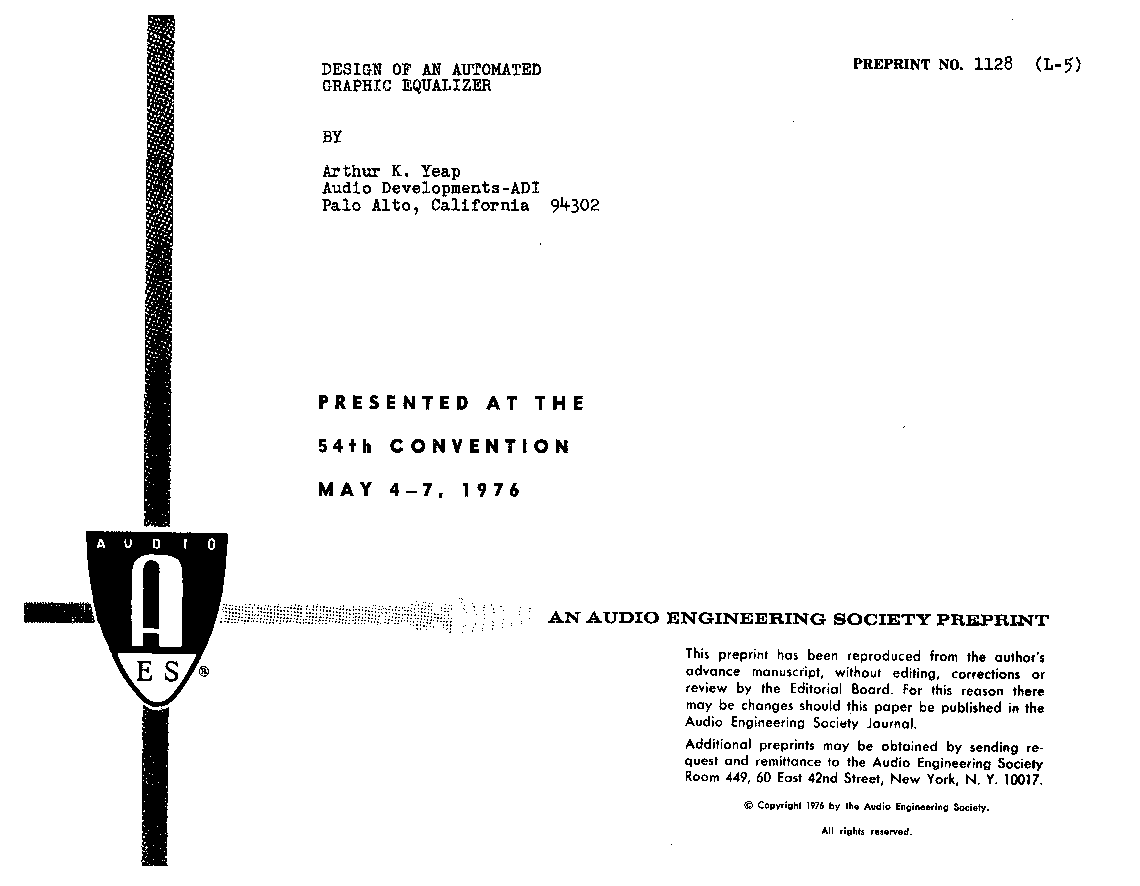

Design of an Automated Graphic Equalizer

An innovative, automatic graphic equalizer has been devised, greatly simplifying the process of equalization. Readouts provide real-time information for adjustment of the 40dB range, octave-band control up or down, thereby flat frequency response in an acoustic environment. Stadiums, studios, halls, etc., can thus be automatically equalized to better than ±0.3dB in a short time, making the tedious chore of equalizing a problem of the past.

Author: Yeap, Arthur K.
Affiliation: Audio Developments-ADI, Palo Alto, CA
AES Convention:54 (May 1976) Paper Number:1128 Import into BibTeX

Click to purchase paper or login as an AES member. If your company or school subscribes to the E-Library then switch to the institutional version. If you are not an AES member and would like to subscribe to the E-Library then Join the AES!

This paper costs $20 for non-members, $5 for AES members and is free for E-Library subscribers.
