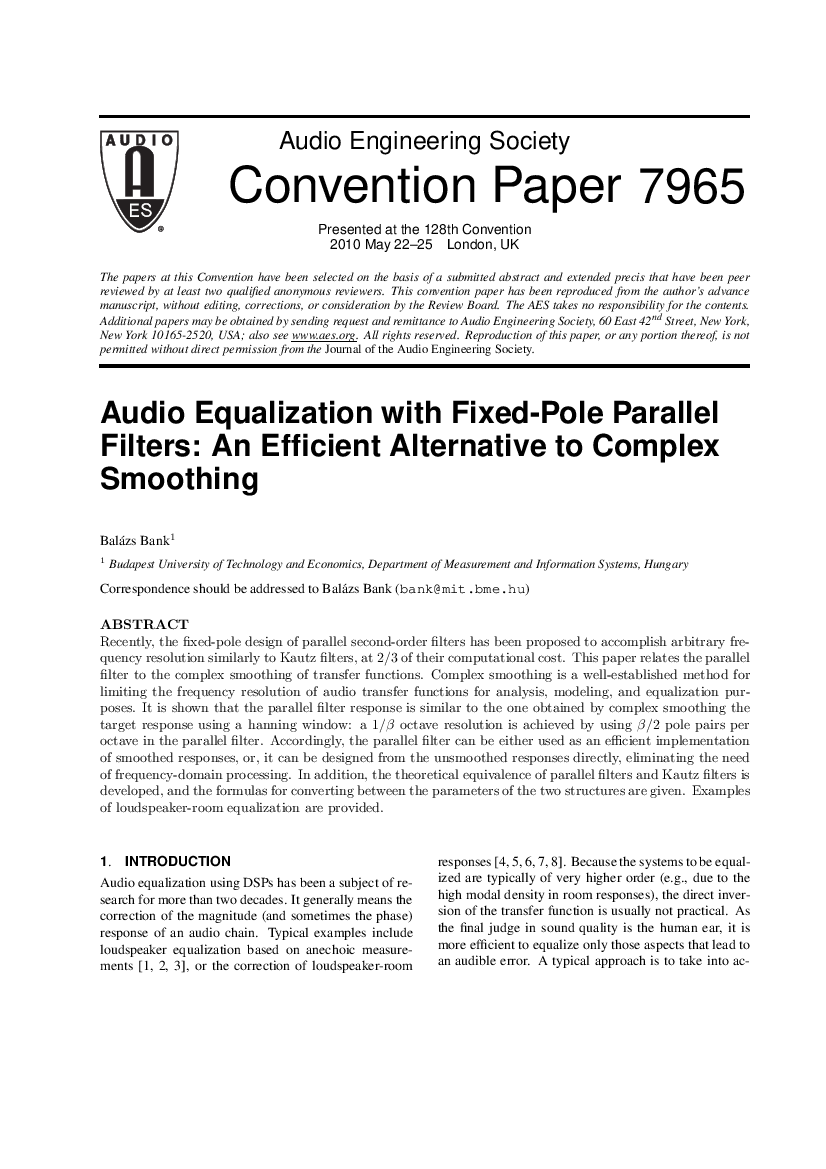

Audio Equalization with Fixed-Pole Parallel Filters: An Efficient Alternative to Complex Smoothing

Recently, the fixed-pole design of parallel second-order filters has been proposed to accomplish arbitrary frequency resolution similarly to Kautz filters, at 2/3 of their computational cost. This paper relates the parallel filter to the complex smoothing of transfer functions. Complex smoothing is a well-established method for limiting the frequency resolution of audio transfer functions for analysis, modeling, and equalization purposes. It is shown that the parallel filter response is similar to the one obtained by complex smoothing the target response using a hanning window: a 1/b octave resolution is achieved by using b/2 pole pairs per octave in the parallel filter. Accordingly, the parallel filter can be either used as an efficient implementation of smoothed responses, or, it can be designed from the unsmoothed responses directly, eliminating the need of frequency-domain processing. In addition, the theoretical equivalence of parallel filters and Kautz filters is developed, and the formulas for converting between the parameters of the two structures are given. Examples of loudspeaker-room equalization are provided.

Author: Bank, Balázs
Affiliation: Budapest University of Technology and Economics, Budapest, Hungary
AES Convention:128 (May 2010) Paper Number:7965 Import into BibTeX
Subject:High Performance Audio Processing

Click to purchase paper or login as an AES member. If your company or school subscribes to the E-Library then switch to the institutional version. If you are not an AES member and would like to subscribe to the E-Library then Join the AES!

This paper costs $20 for non-members, $5 for AES members and is free for E-Library subscribers.

Learn more about the AES E-Library

E-Library Location: (CD 128Papers)   /128/7965.pdf
