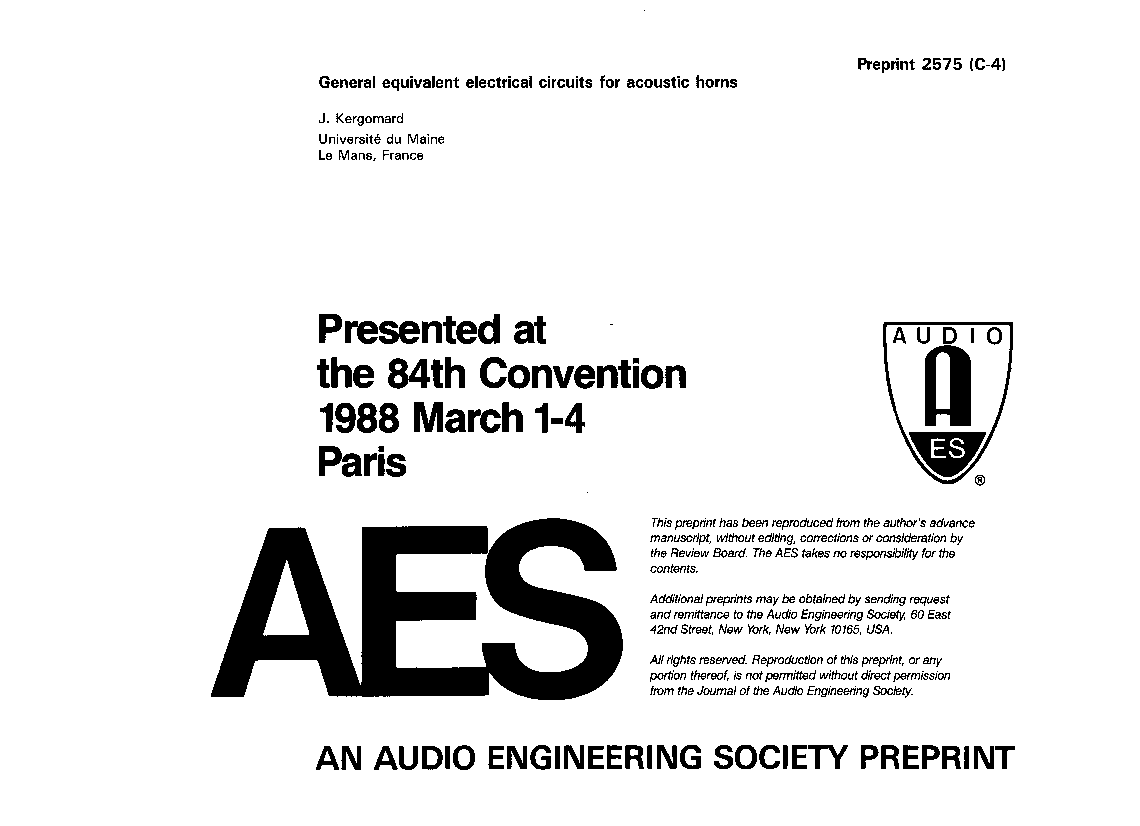

General Equivalent Electrical Circuits for Acoustic Horns

The continued fraction solution of the Riccati equation leads to equivalent circuits of an acoustic horn of any shape. In a previous paper, solution for equivalent circuits for the input impedance were described; we present here a more general solution for the equivalent circuit (T ou Pi) to the transmission through the horns. The numerical calculation is easy, and some consequences can be useful for the design of horns. Finally, we discuss the generalization for very narrow tubes (capillary tubes).

Author: Kergomard, J.
Affiliation: Universite du Maine, Le Mans, France
AES Convention:84 (March 1988) Paper Number:2575 Import into BibTeX
Subject:Loudspeakers

Click to purchase paper or login as an AES member. If your company or school subscribes to the E-Library then switch to the institutional version. If you are not an AES member and would like to subscribe to the E-Library then Join the AES!

This paper costs $20 for non-members, $5 for AES members and is free for E-Library subscribers.
