A Multitrack IC Head for Digital Audio

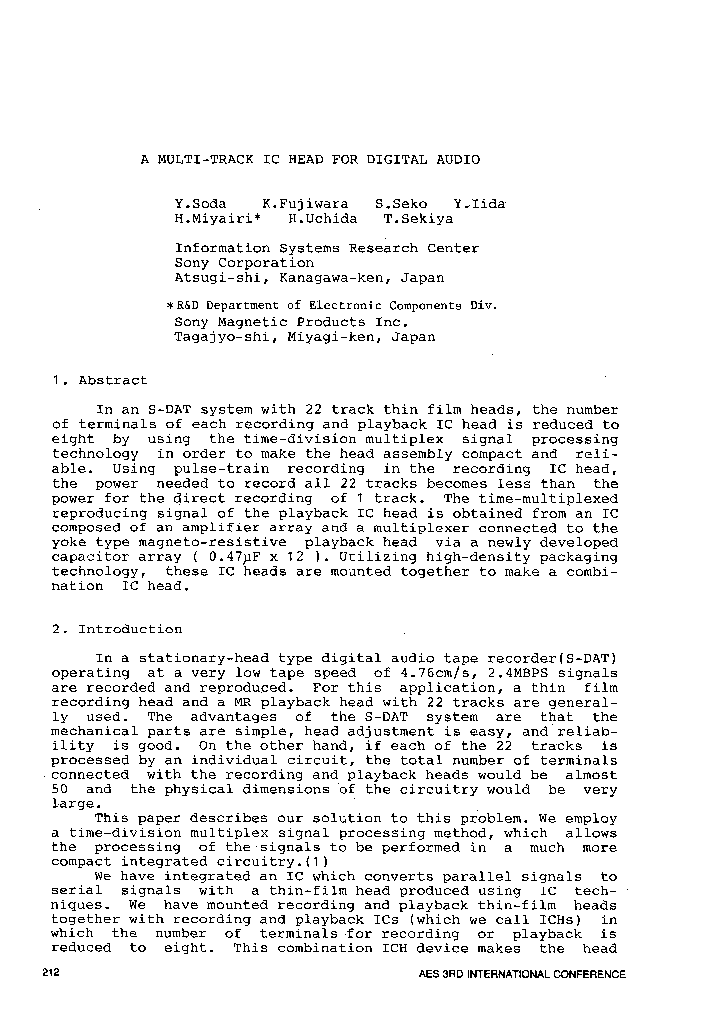

Document Thumbnail

In an S-DAT system with 22 track thin film heads, the number of terminals of each recording and playback IC head is reduced to eight by using the time-division multiplex signal processing technology in order to make the head assembly compact and reliable. Using pulse-train recording in the recording IC head, the power needed to record all 22 tracks becomes less than the power for the direct recording of 1 track. The time-multiplexed reproducing signal of the playback IC head is obtained from an IC composed of an amplifier array and a multiplexer connected to the yoke type magneto-resistive playback head via a newly developed capacitor array (0.47 microfarad x 12). Utilizing high-density packaging technology, these IC heads are mounted together to make a combination IC head.

AES Conference:
Paper Number:
Publication Date:

Click to purchase paper or login as an AES member. If your company or school subscribes to the E-Library then switch to the institutional version. If you are not an AES member and would like to subscribe to the E-Library then Join the AES!

This paper costs $20 for non-members, $5 for AES members and is free for E-Library subscribers.
