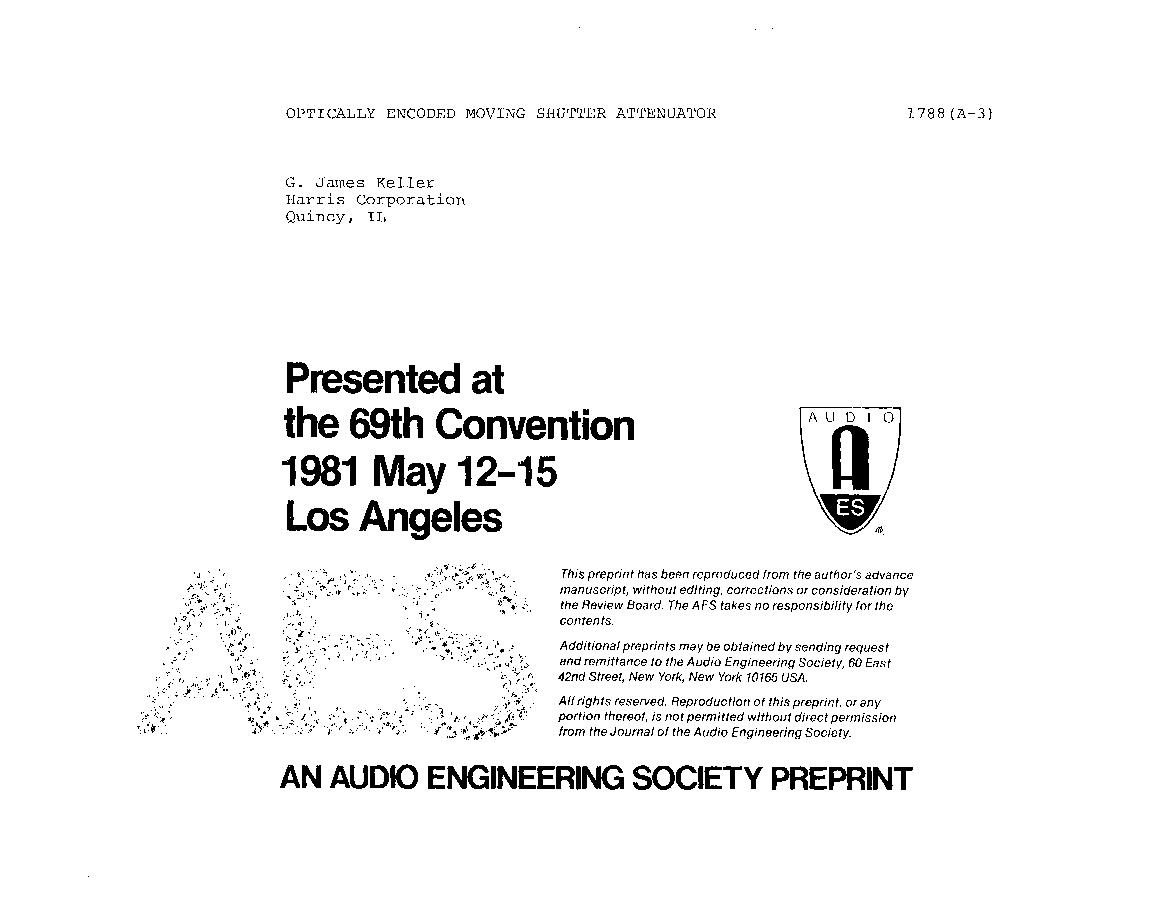

Optically Encoded Moving Shutter Attenuator

This attenuator approach features an optically encoded position sensing slider with digital output for controlling amplifier gain. The slider incorporates a uniquely patterned moving shutter, no moving electrical contacts or parts, for quiet operation and long life. The optical sensing of position can be easily programmed to any attenuation curve or sequence of events and outputted through microprocessing interface or directly to a DAC and VCA.

Author: Keller, G. James
Affiliation: Harris Corporation, Quincy, IL
AES Convention:69 (May 1981) Paper Number:1788 Import into BibTeX

Click to purchase paper or login as an AES member. If your company or school subscribes to the E-Library then switch to the institutional version. If you are not an AES member and would like to subscribe to the E-Library then Join the AES!

This paper costs $20 for non-members, $5 for AES members and is free for E-Library subscribers.
