Designing a Portable, Battery Operated, Programmable, Low Distortion Audio Generator

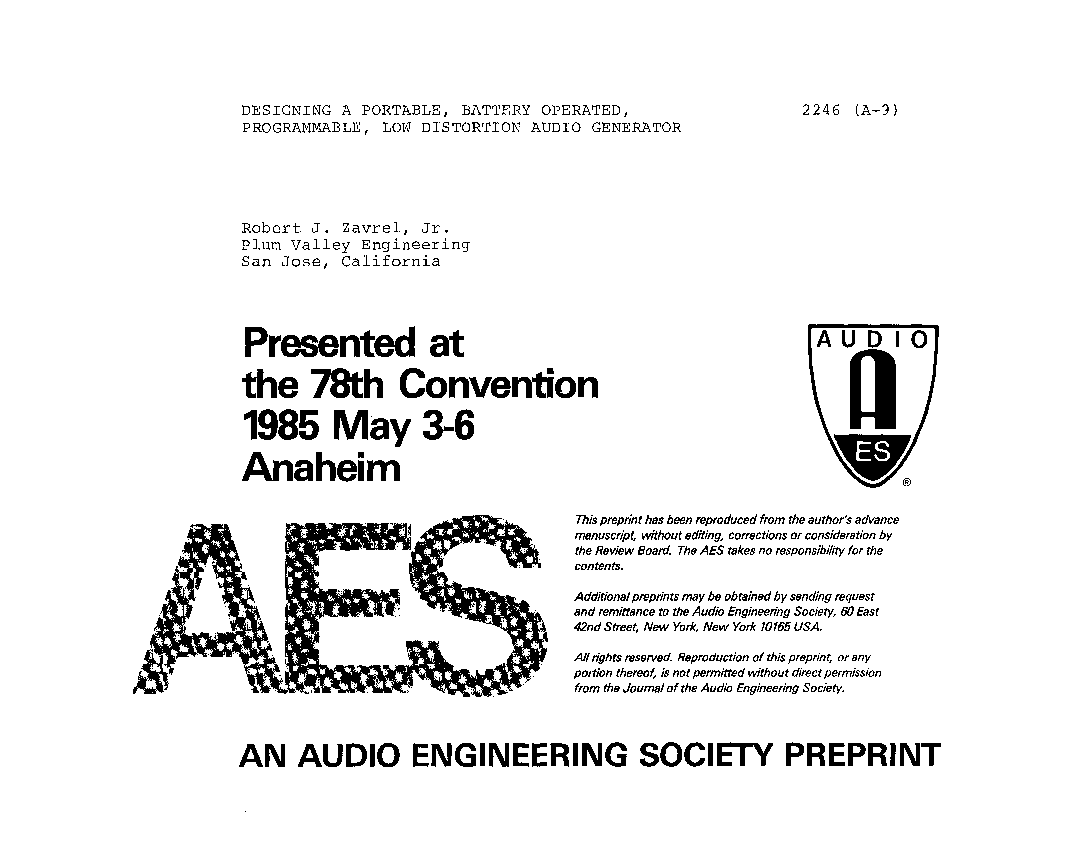

Document Thumbnail

The design objective centered on building a low-distortion sine-wave generator that could be battery operated and controlled by a hand-held computer using the HP-IL standard. The almost exclusive use of JFET and CMOS devices helped realize the objectives of <.25% THD from 1 Hz to 50 kHz, programmable attenuator and stereo output control using digital synthesis for frequency accuracy, and tracking analog filters for good distortion specifications. The unit runs on two 6-volt batteries and draws less than 1 watt.

AES Convention: Paper Number:
Publication Date:

Click to purchase paper or login as an AES member. If your company or school subscribes to the E-Library then switch to the institutional version. If you are not an AES member and would like to subscribe to the E-Library then Join the AES!

This paper costs $20 for non-members, $5 for AES members and is free for E-Library subscribers.

Learn more about the AES E-Library

E-Library Location:

Start a discussion about this paper!
