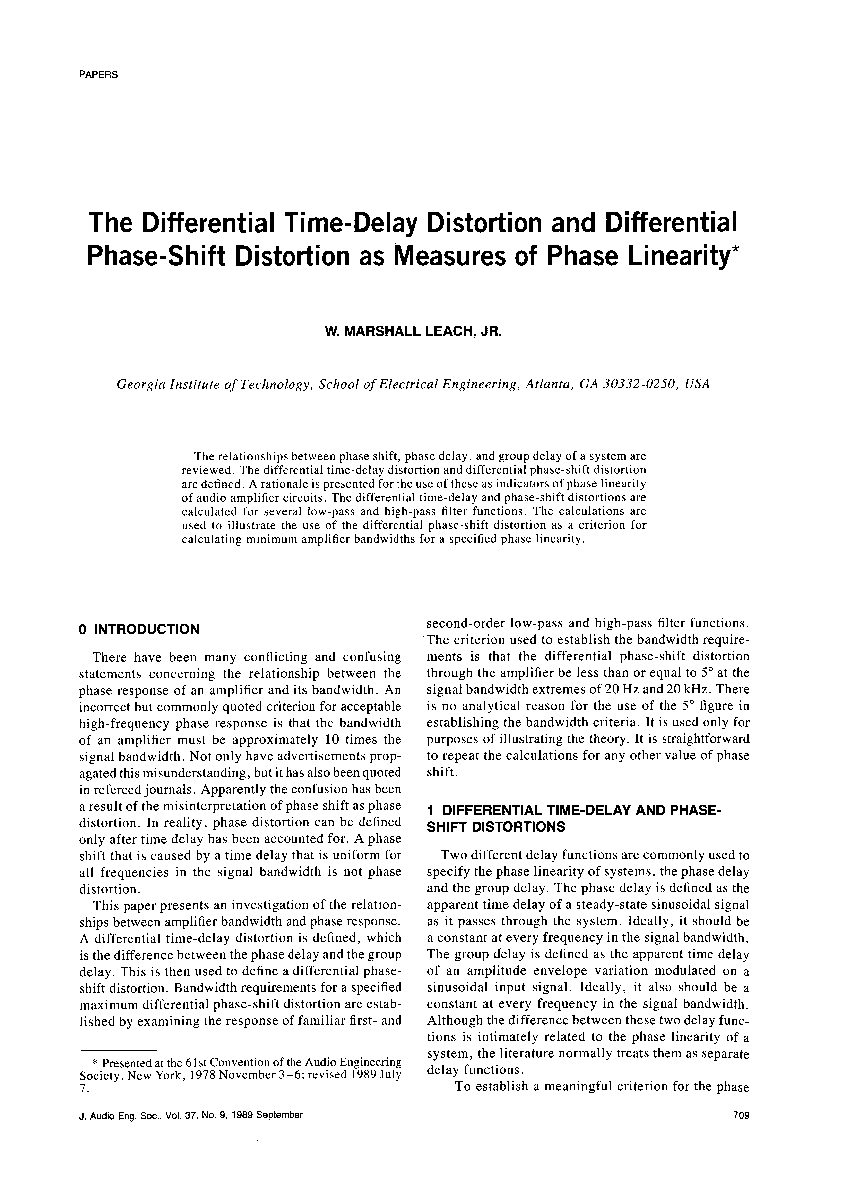

The Differential Time-Delay Distortion and Differential Phase-Shift Distortion as Measures of Phase Linearity

The relationship between phase shift, phase delay, and group delay of a system are reviewed. The differential time-delay distortion and differential phase-shift distortion are defined. A rationale is presented for the use of these as indicators of phase linearity of audio amplifier circuits. The differential time-delay and phase-shift distortions are calculated for several low-pass and high-pass filter functions. The calculations are used to illustrate the use of the differential phase-shift distortion as a criterion for calculating minimum amplifier bandwidths for a specified phase linearity.

Author: Leach, Jr., W. Marshall
Affiliation: Georgia Institute of Technology, School of Electrical Engineering, Atlanta, GA
JAES Volume 37 Issue 9 pp. 709-715; September 1989 Import into BibTeX

Click to purchase paper or login as an AES member. If your company or school subscribes to the E-Library then switch to the institutional version. If you are not an AES member and would like to subscribe to the E-Library then Join the AES!

This paper costs $20 for non-members, $5 for AES members and is free for E-Library subscribers.
