New Loudspeaker Diaphragms Using Fiber Reinforced Plastics

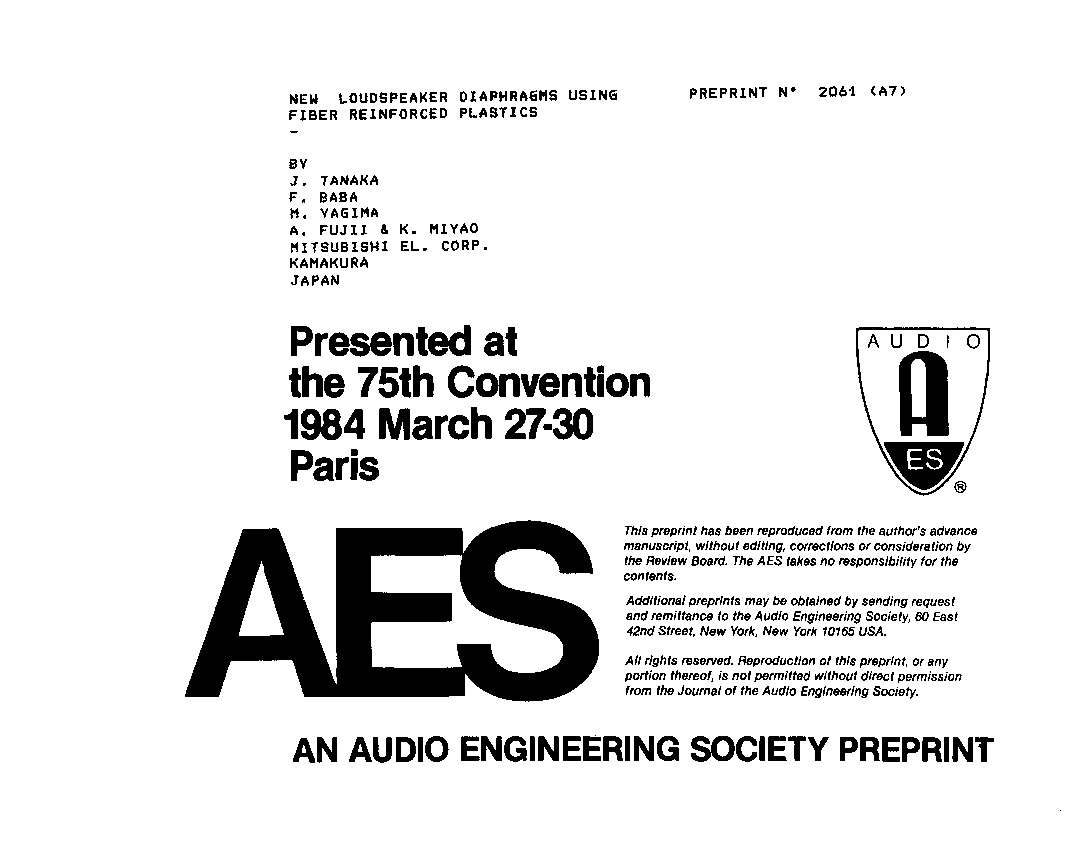

Document Thumbnail

New loudspeaker diaphragms using fiber reinforced plastics have been developed. The diaphragm for the low frequency range is made of a conical or convex shaped honeycomb cone composed of the epoxy resin reinforced with "Aramid fiber" and a metal core. The diaphragm for the rid and high frequency range is made of a very thin injection molded thermoplastic cone, which is reinforced with radially oriented short carbon filter. Both loudspeaker diaphragms have high specific modulus and internal loss and show excellent acoustic characteristics.

AES Convention: Paper Number:
Publication Date:

Click to purchase paper or login as an AES member. If your company or school subscribes to the E-Library then switch to the institutional version. If you are not an AES member and would like to subscribe to the E-Library then Join the AES!

This paper costs $20 for non-members, $5 for AES members and is free for E-Library subscribers.
